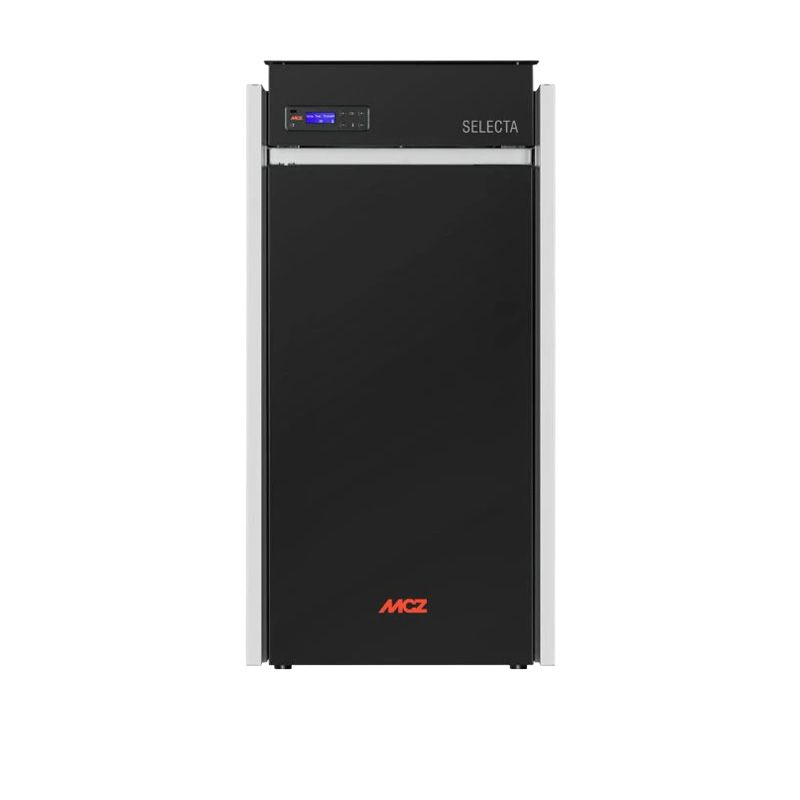

PELLET BOILER MCZ / RED SELECTA HQ 20 KW
A compact boiler for special tasks. Thanks to its small size, it will fit practically in any smallest boiler room.
Safe and secure shopping
Fast shipping
Satisfaction guaranteed
MCZ / Red Selecta “Easy Connect” - an excellent pellet boiler
A compact boiler for special tasks. Thanks to its small size, it will fit practically in any smallest boiler room.
The MCZ / Red Selecta boiler is the successor of the MCZ / Red Compact boiler, recognized and proven in our market. Apart from all the advantages, the Compacta has many new features. It contains a completely new type of hearth, because it is deeper and higher. The furnace is 100% hermetic, this solution has been introduced in all new products of the MCZ Group. MCZ / Red Selecta boilers are fully compatible with the European ErP directive; saving pellets and electricity.
Thanks to the new ceramic filament, the flame appears in just three minutes, 40% faster than in previous versions, and a much lower power consumption. Additionally, a water exchanger has been isolated in order to increase thermal efficiency. The process of cleaning the exchanger has been simplified and accelerated.
High energy class
MCZ / Red Selecta boilers are fully compatible with the European ErP directive; saving pellets and electricity.
ADVANTAGES
Automation
Programmable electronics managing the functions of the boiler. The ability to self-regulate and optimize combustion. Optional Wi-Fi kit for remote control.
Tank
Equipped with a 47/65 kg filling tank.
Turbulators
Stainless steel turbulators ensure a long service life.
Cast iron grate
Cast iron grate for long-lasting durability.
Hydraulics
The hydraulic part can be completed with 2 different kits depending on the needs of the system.
Ceramic filament
High performance ceramic spark plug for fast and reliable ignition.
Combustion air
Combustion air that can be exhausted from the outside for maximum system efficiency.
Ashpan
Large ashtray for weekly cleaning.
Boilers of a higher standard
MCZ / Red Selecta boilers meet the increased standards of the Clean Air program, which allow for obtaining 45% of the subsidy (up to PLN 9,000, not more than 45% of the costs incurred). Boilers for pellets with a higher standard must have the Ekoprojekt 2020 certificate with reduced emission of solid particles with a value of ≤ 20 mg / m3 and have the energy efficiency class A +.
Connect and heat
Boilers configured and ready for operation. The hydraulic and exhaust connections are adapted to common standards. Installation is quick, clean and convenient. The first boiler start-up is also very easy. Just plug it in and heat!
Quiet work
Our devices are among the quietest on the market. It is thanks to the modern components that we use. The boiler can be successfully installed near living rooms.
Advantages of Red boilers
The only boiler that offers cosmically many advantages
COMBUSTION CHAMBER
The boiler does not have an external burner, but a unique and dedicated full pellet combustion chamber.
QUICK START
The ceramic filament will ignite the pellets in just a few minutes, and its additional advantage is increased durability.
SMOOTH ASH
Thanks to the new combustion chamber, the pellets will always be burned perfectly and the user will receive a small amount of smooth ash.
SAFETY PRESSURE SWITCH
The boiler is protected against clogging of the flue pipe or air intake connection.
SAFETY LOCK
A specially developed door lock allows expansion of the combustion chamber in the event of an excessive amount of gases.
SAFETY BUSHES
The boiler exchanger is protected against damage by special rubber expansion sleeves.
FULL BOILER INSULATION
The front panel, door, and top hatch have been insulated to keep the boiler from cooling down excessively and keeping it very quiet.
SIDE INSULATION
For better thermal effects, the side casing of the boiler has been additionally insulated with wool.
EXCHANGER INSULATION
The water exchanger has been insulated with a special material protecting the boiler against heat losses.
ROBUST PERFORMANCE
Red Selecta boilers are made of very durable materials and components while maintaining aesthetic values.
CONTROL PANEL
Extremely simple and pleasant to use driver, without unnecessary "frills". Menu in Polish.
COMFORT OF USE
The design of the boiler was created with the users in mind. Everything is fun to do.
VERTICAL EXCHANGER
The best design in terms of heat collection from fire and ease of cleaning by the user.
TIGHT CONSTRUCTION
A very important element. The boiler only takes in a controlled amount of air needed for combustion.
NO STARTUP LOSS
Small water capacity means only advantages. Quickly heated installation and no heat loss for start-up only.
EASILY ADD PELLETS
A low boiler is nothing but advantages, especially since the standard cylinder is sufficient for 2-4 days of boiler operation.
UPPER
If you need a larger capacity of the container, you can always add an additional extension for 45 kg of pellets.
SIDE HOPPER
If you travel frequently and do not have time to add pellets, choose an external container with a capacity of 250 kg of pellets.
NO WEIGHING NEEDED
Forget about the constant boiler settings. The devices are already set up to work so that pellet burning is most efficient.
WI-FI CONTROL
Your convenience comes first. Thanks to the wireless control you can control your boiler wherever you are.
SERVICE THROUGHOUT POLAND
We have a service network all over Poland. For the sake of our clients, we try to ensure the shortest possible implementation time.
.jpg)
TECHNICAL DATA:
Energy classification
A+
Product class according to EN303-5
5
Overall nominal power
19,5 kW
Nominal power on the water
18,0 kW
Minimum power on water
4,2 kW
Efficiency
92,1 %
Pellet hopper capacity
72 l
Pellet consumption at a power of min
1,0 kg/h
Pellet consumption at max. Power
4,1 kg/h
Autonomy of work with a power of min
47h
Autonomy of work at a power of max
11h
Exhaust outlet
Ø 100 mm
Weight
256 kg
Air inlet
Ø 50 mm
Exhaust gas temperature
110 ºC
guarantee
2 years
Dimensions (H x W x D)
1227x601x722 mm
A compact boiler for special tasks. Thanks to its small size, it will fit practically in any smallest boiler room.
