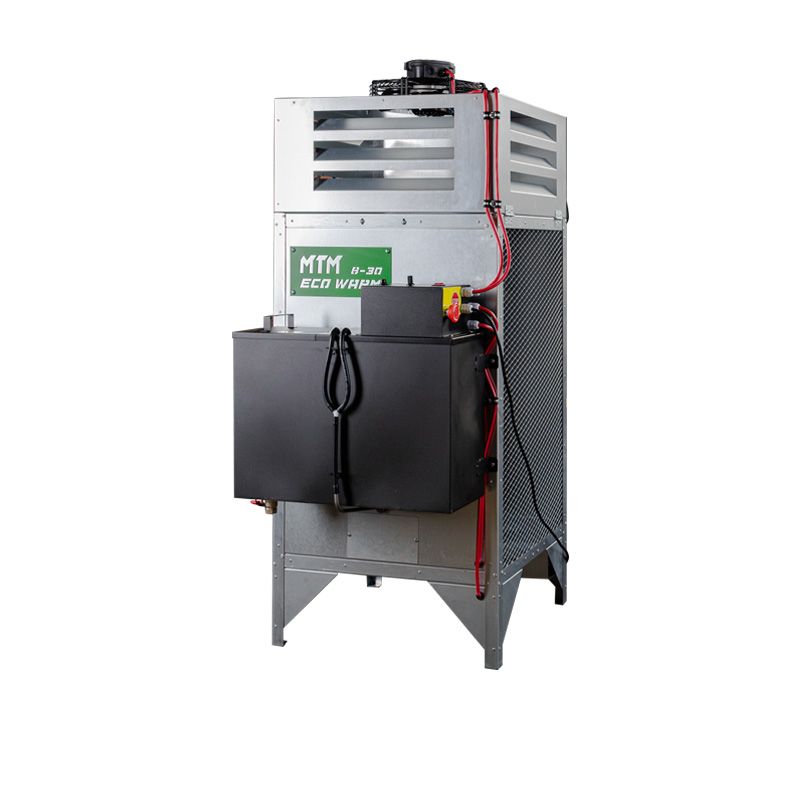

MTM 8-30 (8/19/30 kW) multi-oil air heater - galvanized
The MTM 8-30 multi-oil air heater is intended for heating industrial premises not covered by the central heating system
Your opportunity to save! Click 'Negotiate price' and submit your offer - don't let this offer pass you by!
Safe and secure shopping
Fast shipping
Satisfaction guaranteed
Product description
MTM 8 - 30/2 in 1 - the device combines medium and high power furnaces thanks to a wide range of operation.
A high-precision, low-speed gear fuel pump, specially designed for our devices, taking into account the specific conditions of use, pumps any type of oil, regardless of its density. Thanks to this, you do not have to check the density of the oil at your disposal and you do not have to remember to select the appropriate operating mode - the pump installed in our devices pumps both thick used oils and thinner heating oils and their mixtures.
MAIN FEATURES
Combustion chamber
The combustion chamber is made of stainless steel, while the fire bowl is made of cast iron, not of rapidly cooling steel.
Fuel filler
The fuel filler is designed in such a way as to easily and quickly add fuel, without fear that we will flood the controller or larger contaminants will get into the tank. The easy-to-remove filter allows you to clean it quickly and efficiently.
Overflow protection
New, improved system to prevent oil overflow in the combustion chamber, thanks to a more sensitive micro-switch.
Automation
Improved device electronics. Now you do not have to wonder what voltage you have in the network, because in our latest controller we have used a voltage stabilization system. Over-voltage protection increases the service life of the controller.
The MTM 8-30 universal oil stove controller is equipped with an adjustment knob and an On / Off button.
High thermal efficiency
The MTM 8-30 heater effectively heats rooms up to 800m³ (with good insulation of the building).
Type of fuels that can be used
- vegetable oils (biofuels),
- raw vegetable oils (rapeseed, sunflower and others), including post-frying (gastronomy),
- mineral oils (used engine, gear, hydraulic and diesel oils of HBO I, II, III type with a viscosity not higher than SAE80),
- heating oil.
Exhaust gas discharge
Efficient blower fan
Completely pure heat
Durable housing
Protection against overflow of the furnace
Control panel with LED lights
3-stage heating power regulation 8/19/30 kW
Built-in fuel tank
MODEL DESCRIPTION
- 3-stage power regulation - 8kW, 19kW, 30kW.
- Heater overheating protection.
- Protection against overflow of the furnace.
- Simple and failure-free controller.
- Fuel tank covered with a powder coating.
- The combustion chamber is made of steel with increased temperature resistance.
- 25 l tank.
- Manual ignition.
- Warm air exhaust to the sides.
- Maximum temperature of hot air outlet 50-70 degrees C (at air temperature inside the room about 12 degrees C).
- Blowing in 1460 m3 / h of warm air.
APPLICATION
warehouses
workshops
industrial halls
garages
inverter objects
TECHNICAL DATA:
Heating power
8-30 kW
Oil consumption
from 0.8 to 3.0 l / h
Air flow
1460 m³ / h
Rated current
0.44A
Electric supply
230 V / 50 Hz
Power consumption
100 W.
The diameter of the flue
130 mm
Dimensions W x D x height
540x920x1350 mm
Weight
50 kg
Tank capacity
25 l
