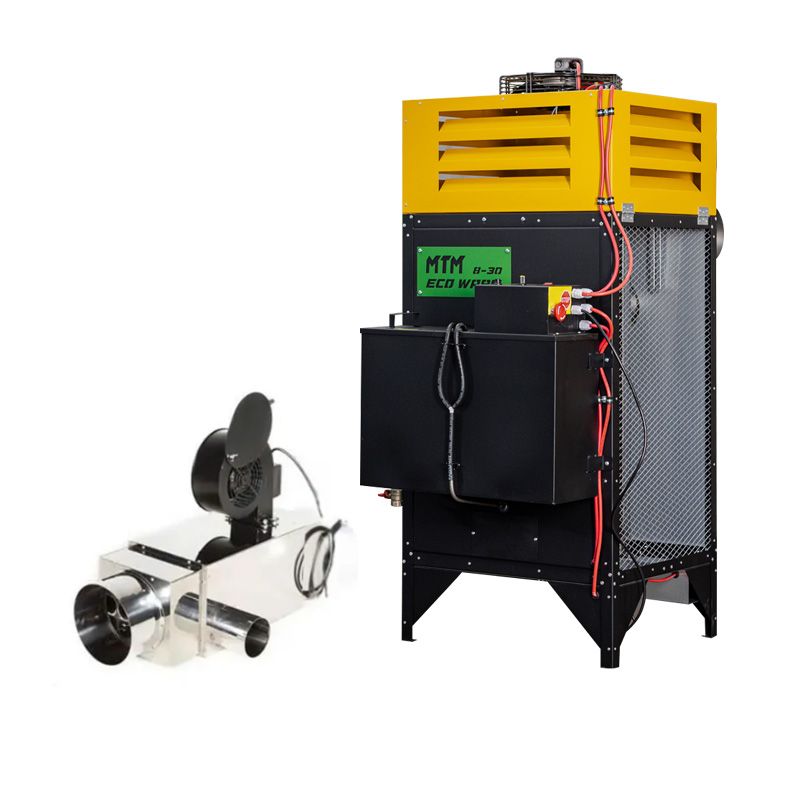

MTM 8-30 ECO WARM (8/19/30 KW) + FLUE GAS ECONOMIZER 12.7 KW
  • MTM 8-30 ECO WARM (8/19/30 KW) + FLUE GAS ECONOMIZER 12.7 KW

MTM 8-30 ECO WARM (8/19/30 KW) + FLUE GAS ECONOMIZER 12.7 KW

The MTM 8-30 ECO WARM multi-oil air heater is intended for heating industrial premises not covered by the central heating system.

This pack contains

help_outlineAsk about product
MTM 8-30 ECO WARM (8/19/30 KW) + FLUE GAS ECONOMIZER 12.7 KW

MTM 8-30 ECO WARM (8/19/30 KW) + FLUE GAS ECONOMIZER 12.7 KW

The MTM 8-30 ECO WARM multi-oil air heater is intended for heating industrial premises not covered by the central heating system.

I accept privacy policy rules



Safe and secure shopping



Fast shipping



Satisfaction guaranteed


MTM 8 - 30 ECO WARM/2 in 1 - the device combines medium and high power furnaces thanks to a wide range of work.

A high-precision, low-speed gear fuel pump, specially designed for our devices, taking into account the specific conditions of use, pumps any type of oil, regardless of its density. Thanks to this, you do not have to check the density of the oil at your disposal and you do not have to remember to select the appropriate operating mode - the pump installed in our devices pumps both thick used oils and thinner heating oils and their mixtures.

MAIN FEATURES

Combustion chamber

The combustion chamber is made of stainless steel, while the fire bowl is made of cast iron, not of rapidly cooling steel.

Fuel filler

Fuel filler designed in such a way as to easily and quickly add fuel, without fear that we will flood the controller or larger contaminants will get into the tank. The easy-to-remove filter allows you to clean it quickly and efficiently.

Overflow protection

New, improved system to prevent oil overflow in the combustion chamber, thanks to a more sensitive micro-switch.

Automation

Improved device electronics . Now you do not have to wonder what voltage you have in the network, because in our newest controller we have used a voltage stabilization system. The overvoltage protection increases the service life of the controller.

The universal oil stove controller type MTM 8-30 ECO WARM is equipped with an adjustment knob and an On / Off button.

High thermal efficiency

The MTM 8-30 ECO WARM heater efficiently heats rooms up to 800m³ (with good insulation of the building).

The type of fuels that can be used

  • vegetable oils (biofuels),
  • raw vegetable oils (rapeseed, sunflower and others), including post-frying (gastronomy),
  • BIODIESEL
  • heating oil
Piec multiolejowy MTM 8-30

Exhaust gas discharge

Efficient blower fan

Completely pure heat

Durable powder coated housing

Protection against overflow of the furnace

Control panel

3-stage regulation of the heating power
8/19/30 kW

Built-in fuel tank

Piec multiolejowy MTM 8-30

MODEL DESCRIPTION

  • 3-step power control - 8kW, 19kW, 30kW.
  • Heater overheating protection.
  • Protection before overfilling the furnace.
  • Simple and failure-free controller.
  • Fuel tank covered with a powder coating.
  • Combustion chamber made of steel with increased temperature resistance.
  • Tank 25 l.
  • Manual ignition.
  • Blowing warm air to the sides.
  • Maximum temperature of warm air exhaust 50-70 ° C (at air temperature inside the room about 12 degrees C).
  • Blowing in 1460 m3 / h of warm air.

APPLICATION

warehouses

workshops

industrial halls

garages

inverter objects

Warsztaty samochodowe
Magazyny
Pomieszczenia gospodarcze i inwentarskie

Double-sided flue gas economizer / 12.7kW recuperator

Double-sided flue gas economizer / recuperator is a device that allows you to recover up to 40% of the heat that goes into the chimney. Air flow 450 m³ / h.

Construction

The MTM economizer is a compact structure, consisting of a tubular heat exchanger, stainless steel housing and an efficient fan -450 m³ / h.

Action

The hot exhaust gases from the heater into the chimney pass through the heat exchanger, heating the clean air taken in from the room at the same time. Thanks to the radial fan, the heated air is forced through the two warm air outlets.

The additional heat obtained from the flue gas increases the heating efficiency of the device, thus allowing to heat a larger area or reduce costs heating by reducing the fuel consumption of the heating device.

By connecting blow ducts to the economizer outlets, the heated air can be directed to adjacent rooms. The shorter the duct section, the greater the efficiency, so it is recommended to use ducts to heat rooms located "through the wall" with the room where the heating device is located, or at a short distance from this room.

The economizer is especially useful for heating social rooms (canteen, cloakroom, etc.), offices and points of sale.

MAIN FEATURES

Efficient fan with air flow
450 m³ / h

Air regulating flap

Stainless steel housing

Durable construction

Two-way air outlet

Extensive heat exchanger

Up to 40% heat recovery from exhaust gases

Destiny:

  • increase the efficiency of stoves and heaters,
  • lower heating costs,
  • heat 1 or 2 additional rooms. < / li>

Installation

The economizer should be installed on the vertical section of the exhaust pipe, as close as possible to the flue - the exhaust outlet from the appliance (where the exhaust gas temperature is the highest).

APPLICATION

  • blast furnaces ( MTM 17-33 ECO WARM , MTM 8-30 ECO WARM , MTM 15 -35GT ECO WARM , MTM 30-52 ECO WARM , WA29 , WA33 , WA33A , WA33B , MAC , HP 125 , HP 115 , AT-305 , AT- 306 , AT-307 , MTM33 , HP-105 , HP-115 , HP-125 , INOP-34 , SMH33 )
  • MASTER brand heaters ( BV 110 E , BV 170 E , BV 290 E )
  • solid fuel stoves and other furnaces with a flue gas outlet up to 150 mm in diameter

Piece nadmuchowe

MTM 17-33, MTM 8-30, MTM 15-35GT, MTM 30-52, WA29, WA33, WA33A, WA33B, MAC, HP 125, HP 115, AT-305, AT-306, AT-307, MTM33, HP-105, HP-115, HP-125, INOP-34, SMH33.
ZOBACZ

MASTER oil heaters

BV 110 E, BV 170 E, BV 290 E
ZOBACZ

Heaters and solid fuel stoves

Having an exhaust outlet with a diameter of 150 mm
ZOBACZ

TECHNICAL DATA:

MTM 8-30 ECO WARM

Heating power

8-30 kW

Oil consumption

od 0,8 do 3,0 l/h

Air flow

1460 m³/h

Rated current

0,44 A

Electric supply

230 V / 50 Hz

Power consumption

100 W

The diameter of the flue

130 mm

Dimensions W x D x height

540x920x1350 mm

Weight

50 kg

Tank capacity

25 l

FLUE GAS ECONOMIZER 12.7 KW - 450M³ / H

Air flow

450 m³/h

The diameter of the chimney connection

150 mm

The diameter of the hot air outlets

80 mm

Temperature rise

do 100 °C

Height

610 mm

Width

370 mm

Depth

420 mm

Weight

8,7 kg
