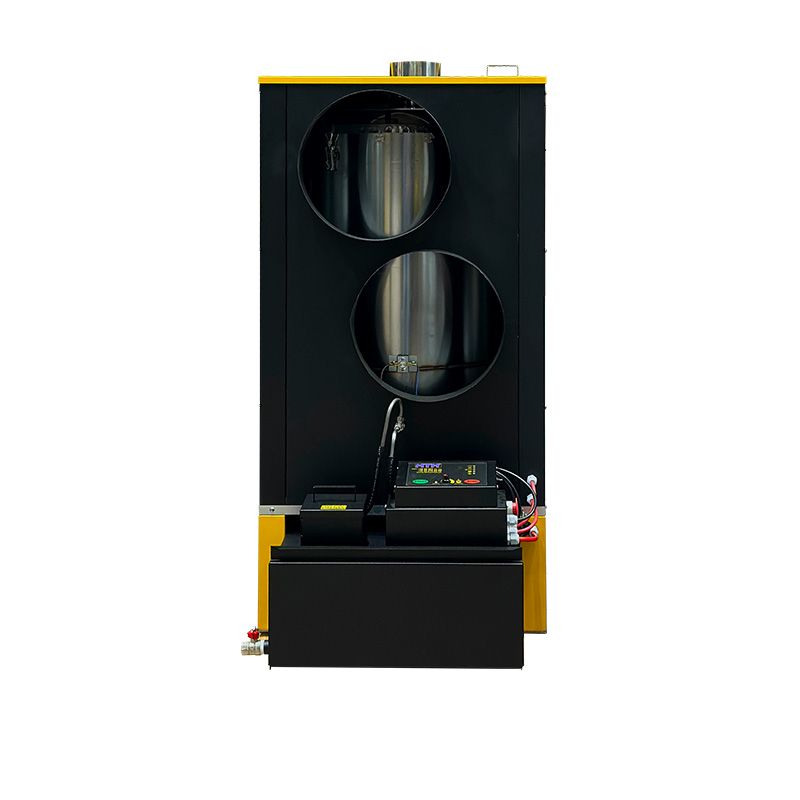

MTM 52 ECO WARM RF (30-52 kW) multi-oil air heater

The MTM 52 ECO WARM RF multi-oil air heater is intended for heating industrial premises not covered by the central heating system.

help_outlineAsk about product
MTM 52 ECO WARM RF (30-52 kW) multi-oil air heater

MTM 52 ECO WARM RF (30-52 kW) multi-oil air heater

The MTM 52 ECO WARM RF multi-oil air heater is intended for heating industrial premises not covered by the central heating system.

I accept privacy policy rules



Safe and secure shopping



Fast shipping



Satisfaction guaranteed

MTM 30-52 ECO WARM RF (30 - 52 kW) / 2 in 1 - the device combines medium and high power furnaces thanks to a wide range of operation.

Multi-oil infusion furnace type MTM 30-52 ECO WARM RF. The model is equipped with air outlets, enabling the connection of air ducts and transporting warm air to other rooms or over long distances, and setting the warm air outlets in a specific direction.

Power control consists in smoothly increasing or decreasing the revolutions of the fuel feeding pump. Burning takes place evenly, regardless of the thickness of the oil. A high-precision, low-speed gear fuel pump, specially designed for our devices, taking into account the specific conditions of use, pumps any type of oil, regardless of its density. Thanks to this, you do not have to check the density of the oil at your disposal and you do not have to remember to select the appropriate operating mode - the pump installed in our devices pumps both thick used oils and thinner heating oils and their mixtures.

The fuel filler is designed in such a way as to easily and quickly add fuel, without fear that we will flood the controller or larger contaminants will get into the tank. The easy-to-remove filter allows you to clean it quickly and efficiently.

New, improved system to prevent oil overflow in the combustion chamber, thanks to a more sensitive micro-switch.

Improved device electronics. Now you do not have to wonder what voltage you have in the network, because in our latest controller we have used a voltage stabilization system. Over-voltage protection increases the service life of the controller.

MAIN FEATURES

Closed combustion chamber

The MTM 30-52 ECO WARM heater has a closed combustion chamber with an additional oxygenating fan and the possibility of drawing air from another room or from outside. Thanks to this solution, the heater can work in rooms with slightly increased dustiness, e.g. paint preparation plants, and with extraction machines creating negative pressure.

Combustion chamber

The combustion chamber is made of stainless steel, while the fire bowl is made of cast iron, not of rapidly cooling steel.

High thermal efficiency

The MTM 30-52 ECO WARM heater effectively heats rooms up to 1500m³ (with good insulation of the building).

Control panel

The universal oil stove controller, type MTM 30-52 ECO WARM, is equipped with a control knob and two buttons that allow the user to control the operation of the heater and LEDs signaling the operating status of the device combined with an acoustic signal in the event of a failure.

Type of fuels that can be used

  • vegetable oils (biofuels),
  • raw vegetable oils (rapeseed, sunflower and others), including post-frying (gastronomy),
  • BIODIESEL
  • heating oil.
Piec multiolejowy MTM 52 RF

Exhaust gas discharge

Durable housing covered with powder paint

Closed combustion chamber

Tubular heat exchanger

Efficient blower fan

Control panel with LED lights

Smooth regulation of the heating power 30-52 kW

Built-in fuel tank

Protection against overflow of the furnace

Completely pure heat

Piec multiolejowy MTM 52 RF

MODEL DESCRIPTION

  • smooth power regulation from 30 kW to 52 kW,
  • heater protection against overheating,
  • protection against overflow of the furnace,
  • LED diodes signaling operation or possible emergency stop of combustion,
  • built-in control thermostat (the fan turns off in the shutdown function of the stove when the temperature drops below 40 ° C within the combustion chamber),
  • thermostatic pump operation supervision,
  • durable housing covered with a powder coating,
  • combustion chamber made of stainless steel,
  • 90 l tank,
  • manual ignition,
  • tubular heat exchanger,
  • completely pure heat,
  • hot air outlet temperature 70-90 degrees C (at air temperature inside the room about 12 degrees C),
  • blowing 5500 m3 / h of warm air.
  • diameter of the outlets 315 mm.

SEE VIDEO

APPLICATION

warehouses

workshops

industrial halls

garages

inverter objects

Warsztaty samochodowe
Magazyny
Pomieszczenia gospodarcze i inwentarskie

TECHNICAL DATA:

Heating power

30-52 kW

Oil consumption

from 3 to 5.2 l / h

Air flow

5500 m³ / h

Rated current

1.3 A

Electric supply

230 V / 50 Hz

Power consumption

300 W.

The diameter of the flue

150 mm

Dimensions W x D x height

1300x600x1200 mm

Weight

120 kg

Tank capacity

90 l
