MTM 229 MV (229 kW) air heater with EM-26 gas burner

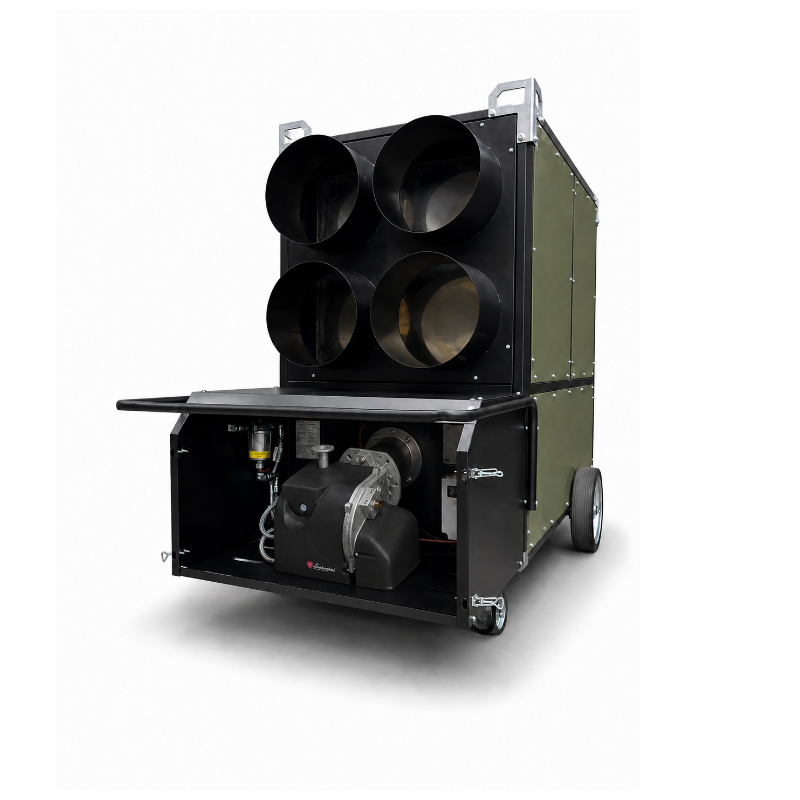

Mobile heater with flue gas discharge, model MTM 229 MV (229kW) - axial fan, 3-phase power supply, equipped with a Lamborghini EM 26 gas burner.

help_outlineAsk about product
MTM 229 MV (229 kW) air heater with EM-26 gas burner

MTM 229 MV (229 kW) air heater with EM-26 gas burner

Mobile heater with flue gas discharge, model MTM 229 MV (229kW) - axial fan, 3-phase power supply, equipped with a Lamborghini EM 26 gas burner.

I accept privacy policy rules



Safe and secure shopping



Fast shipping



Satisfaction guaranteed

MTM 229MV gas heater (229 kW) with an external Lamborghini

Mobile heaters MTM 229MV is a combination of modern solutions used in one device. They will quickly provide heat wherever the climatic conditions require it. A specially designed and made of stainless steel combustion chamber and easier access to the heat exchanger allow the use of various burners, thanks to which we can use fuel oil, natural gas, LPG or using a Multi burner, used oil or alternative fuels of the KTS-F type.

Standard heaters are equipped with an axial fan and a single hot air outlet. Heaters in the extended version MTM 229MV can be equipped with a radial fan, enabling the injection of heated air into the network of blower channels. As an option, there are also replaceable blower panels for connecting four flexible sleeves, enabling heating of e.g. four rooms at the same time. Depending on the needs, the blower panels can be mounted on the front, sides or top of the heater.

MAIN FEATURES

Heat exchanger made of stainless steel pipes

Possible air outlet: 1,2 or 4-way

Stainless steel combustion chamber

Efficient axial fan

Console

High-class oil, gas or multi-oil burner

Strong and durable construction

Powder coated housing

Wheels for transporting the device included

Comfortable handle

Characteristics of the MTM 229MV heater

  • Can be suspended from the ceiling or the heater can work on its side.
  • As standard, an axial fan with a pressure of 100 Pa.
  • Adapted for connecting flexible sleeves.
  • Blow out with one or four channels.
  • Exhaust gas discharge.
  • Separate gas burner.
  • Possibility to control an external thermostat.
  • A set of wheels as standard.
  • Stainless steel combustion chamber.
  • High-efficiency heat exchanger.
  • Summer / winter switch for ventilation.
  • The combustion chamber is designed and constructed to allow easier air flow.
  • Factory handles for easy transport with a forklift.
  • Housing made of galvanized steel.

Application examples

  • warehouses,
  • factories,
  • loading ramps,
  • production halls,
  • assembly plants,
  • workshops,
  • utility and livestock premises,
  • exhibition halls,
  • shooting halls, etc.

APPLICATION

car repair shops

Warsztaty samochodowe

warehouse halls

Hale magazynowe

manufacturing plants

Hale produkcyjne

TECHNICAL DATA:

Heating power

229 kW

Air flow

12,500 m³ / h

Thermostat control

possible

Fuel consumption

18.5 kg / h

Fuel

fuel oil / diesel

Power consumption

2.35 kW

Power

400 V / 50 Hz

Chimney connection

⌀ 200 mm

Exhaust outlet

1 x ⌀ 700 or 4 x ⌀ 320 mm

Heater Dimensions - Without Wheels (W x D x H)

800x2100x1600 mm

Net weight

310 kg
