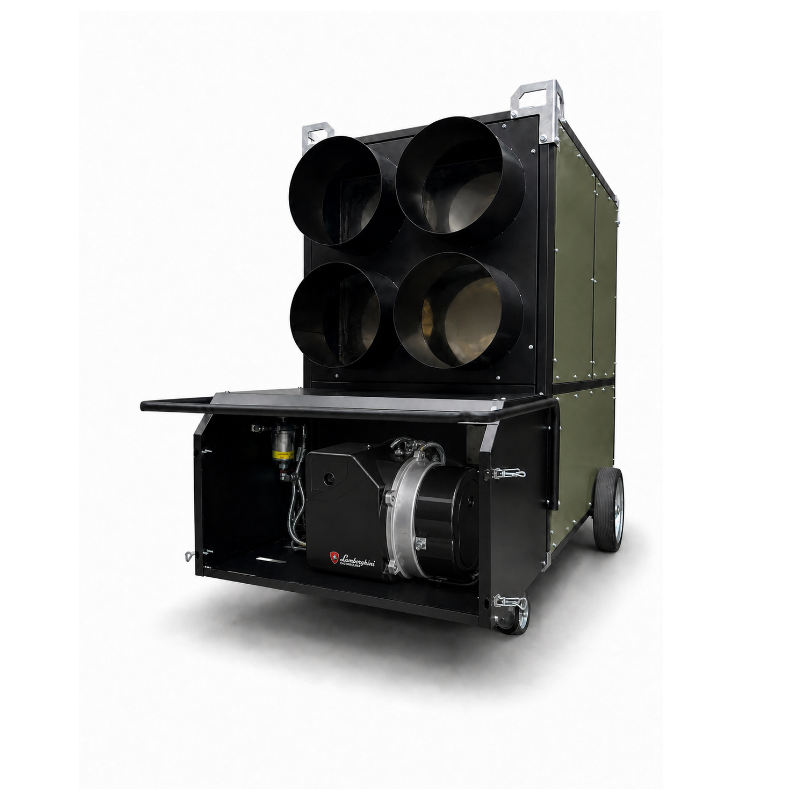

MTM 229 MV (229 KW) AIR HEATER WITH ECO 20 OIL BURNER
Mobile, high-pressure oil heater with flue gas discharge, model MTM 229 MV (229kW) - axial fan, 3-phase power supply, equipped with a Lamborghini ECO 20 oil burner.
Safe and secure shopping
Fast shipping
Satisfaction guaranteed
MTM 229MV (229 kW) oil heater with external Lamborghini
Mobile heaters MTM 229MV is a combination of modern solutions used in one device. They will quickly provide heat wherever the climatic conditions require it. A specially designed and made of stainless steel combustion chamber and easier access to the heat exchanger allow the use of various burners, thanks to which we can use fuel oil, natural gas, LPG or using a Multi burner, used oil or alternative fuels of the KTS-F type.
Standard heaters are equipped with an axial fan and a single hot air outlet. Heaters in the extended version MTM 229MV can be equipped with a radial fan, enabling the injection of heated air into the network of blower channels. As an option, there are also replaceable blower panels for connecting four flexible sleeves, enabling heating of e.g. four rooms at the same time. Depending on the needs, the blower panels can be mounted on the front, sides or top of the heater.
MAIN FEATURES
Heat exchanger made of stainless steel pipes
Possible air outlet: 1 or 4-way
Stainless steel combustion chamber
Efficient axial fan
Console
High-class oil, gas or multi-oil burner
Strong and durable construction
Powder coated housing
Wheels for transporting the device included
Comfortable handle
Characteristics of the MTM 229MV heater
- Can be suspended from the ceiling or the heater can work on its side.
- As standard, an axial fan with a pressure of 100 Pa.
- Adapted for connecting flexible sleeves.
- Blow out with one or four channels.
- Exhaust gas discharge.
- Separate oil burner.
- Possibility to control an external thermostat.
- A set of wheels as standard.
- Stainless steel combustion chamber.
- High-efficiency heat exchanger.
- Summer / winter switch for ventilation.
- The combustion chamber is designed and constructed to allow easier air flow.
- Factory handles for easy transport with a forklift.
- Housing made of galvanized steel.
Application examples
- warehouses,
- factories,
- loading ramps,
- production halls,
- assembly plants,
- workshops,
- utility and livestock premises,
- exhibition halls,
- shooting halls, etc.
APPLICATION
car repair shops
warehouse halls
manufacturing plants
TECHNICAL DATA:
Heating power
229 kW
Air flow
12,500 m³ / h
Thermostat control
possible
Fuel consumption
18.5 kg / h
Fuel
natural gas or LPG
Power consumption
2.35 kW
Power
400 V / 50 Hz
Chimney connection
⌀ 200 mm
Exhaust outlet
1 x ⌀ 700 or 4 x ⌀ 320 mm
Heater Dimensions - Without Wheels (W x D x H)
800x2100x1600 mm
Net weight
330 kg
